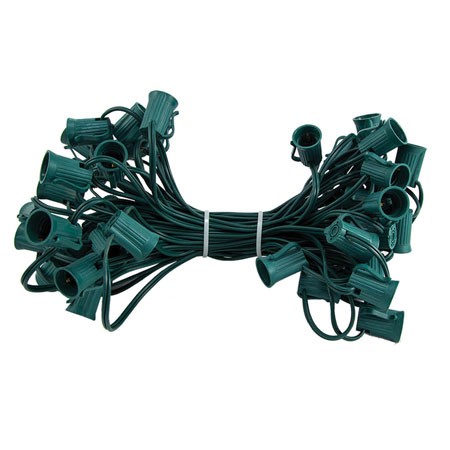

C9 Cord, 9" Spacing, Green Wire, SPT-1, 50'
C9 empty socket lines can help you create customized light sets that you can use for holidays, events, and other special occasions. As the top seller amongst our pro installers, and with endless possibilities, you can create unique light sets with colors that celebrate your favorite sports team going to the Super Bowl, party themes, special events, or one-of-a-kind Christmas display. Green wire empty socket line gives the opportunity to create custom lengths of lights with retrofit bulbs that match your display. Decorate like a professional installer this season!
- • 50' of Green Wire
- • 66 C9 sockets spaced 9" apart
- • Plugs sold separately (Vampire Plugs)
- • UL rated for indoor and outdoor use
- • Use LED bulbs to save up to 90% more energy than incandescent lights
- Maximum bulb load:
- • 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
- • 100 (C9) 7-watt incandescent bulbs
- • 70 (C9) 10-watt incandescent bulbs
- • Up to 50 feet= 10 amps
- • 51-100 feet= 7 amps
- • 101-150 feet= 5 amps
- • 151-200 feet= 3.5 amps*
- • 201-250 feet= 2.5 amps*
- *Only used for C7/C9 perimeter lighting applications
Maximum amperage for 18/2 gauge wire:
• Case Quantity: 1
• Case Weight: 2.5 lbs.
- 1-1 $34.00
- 2-2 $29.80
- 3-5 $28.10
- 6-9 $26.40
- 10+ $24.70
C9 Cord, 9" Spacing, Green Wire, SPT-1, 50'
- • Socket Type: C9
- • Professional/Commercial Grade
- • Length: 50'
- • Number of Sockets: 66
- • Socket Spacing: 9"
- • Rating: SPT-1 - .03 inch insulation thickness
- • Wire Gauge: 18
- • Voltage: 110/120
- • Usage: Indoor/Outdoor
Plugs sold separately - (18/2 Male Slide On - SPT-1 and 18/2 Female Slide On - SPT-1)
Maximum bulb load:
- 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
- 100 (C9) 7-watt incandescent bulbs
- 70 (C9) 10-watt incandescent bulbs
Maximum amperage for 18/2 gauge wire:
- Up to 50 feet= 10 amps
- 51-100 feet= 7 amps
- 101-150 feet= 5 amps
- 151-200 feet= 3.5 amps*
- 201-250 feet= 2.5 amps*
*= Only used for C7/C9 perimeter lighting applications
Frequently Asked Questions
Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?
Some people simply fold the cord over into a small, 1" loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
| SPT | SPT-1 |
|---|
-
