LITE-NETICS C9 Cord Green Wire - 12" Spacing - SPT-1 - 100'

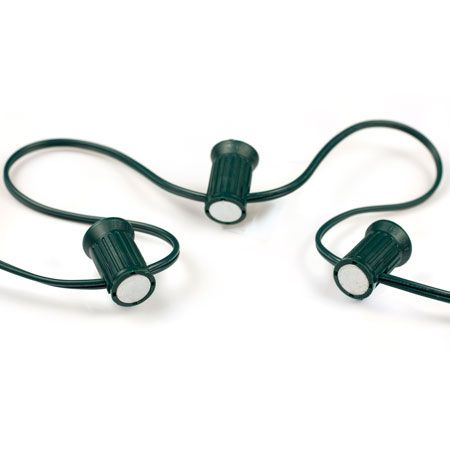

Lite-Netics Magnetic Empty Socket Line makes installations on ferrous metals easier and eliminates the need for additional accessories. Due to the unique design, you can still use clips for longer runs.

• Works with ferrous metals - will not work on Aluminum
• Not recommended for surface temperatures that reach 175 degrees Fahrenheit or higher.
• Brand: Lite-netics
• Nickel Protected Magnet - Coating that prevents any rusting
• Magnet: High-grade neodymium magnet
• Number of Sockets: 100
• Spacing: 12"
• Socket Type: Intermediate, E17, C9
• Connection: Plug ends
• Voltage: 110/120
• Wire Length: 100'
• Lead Length: 6"
• Tail length: 6"
• Wire gauge: 18

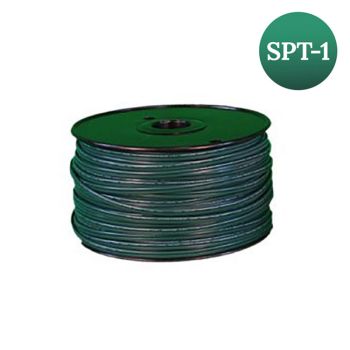

• Rating: SPT-1 - .03 inch insulation thickness
• UL Rating: indoor and outdoor use




Maximum bulb load:

• 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
• 100 (C9) 7-watt incandescent bulbs
• 70 (C9) 10-watt incandescent bulbs

Maximum amperage for 18/2 gauge wire:

• Up to 50 feet= 10 amps
• 51-100 feet= 7 amps
• 101-150 feet= 5 amps
• 151-200 feet= 3.5 amps*
• 201-250 feet= 2.5 amps*

*= Only used for C7/C9 perimeter lighting applications



Frequently Asked Questions

Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?

Some people simply fold the cord over into a small, 1" loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.



What is the magnetic pull for lite-netics?

Litenetics uses a high-grade neodymium magnet which is the strongest rare earth magnet for it's size.  The pull strength is directly related to the surface it is adhering to.  For example, the pull force is much higher off of a steel I-beam than off a thin metal flashing. Additionally, a C9 strand has been tested on the hood of a vehicle (specifically a pick up truck) and was able to withstand speeds up to 65mph.
