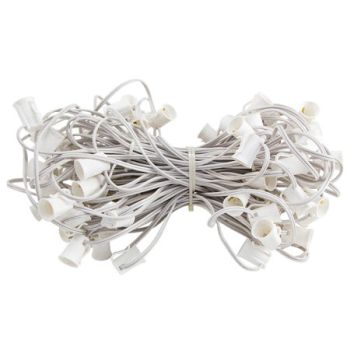

C9 Cord, 15" Spacing, White Wire, SPT-1, 50'
C9 empty socket lines are a great choice to create customized light sets that you can use for those special moments in your life. As the top seller among our pro installers and with endless possibilities, you can create unique light sets with colors that celebrate your anniversary, engagement, baby shower, other special events, or a one-of-a-kind Christmas display. White wire empty socket line gives the opportunity to create custom lengths of lights with retrofit bulbs that match your display. Decorate like a professional for all the timeless moments in your life!
- • 50' of White Wire
- • 40 C9 sockets spaced 15" apart
- • Plugs sold separately (Vampire Plugs)
- • UL rated for indoor and outdoor use
- • Use LED bulbs to save up to 90% more energy than incandescent lights
- Maximum bulb load:
- • 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
- • 100 (C9) 7-watt incandescent bulbs
- • 70 (C9) 10-watt incandescent bulbs
- • Up to 50 feet= 10 amps
- • 51-100 feet= 7 amps
- • 101-150 feet= 5 amps
- • 151-200 feet= 3.5 amps*
- • 201-250 feet= 2.5 amps*
- *Only used for C7/C9 perimeter lighting applications
Maximum amperage for 18/2 gauge wire:
• Case Weight: 1.9 lbs.
- 1-1 $28.85
- 2-2 $25.20
- 3-5 $23.80
- 6-9 $22.40
- 10+ $20.90
C9 Cord, 15" Spacing, White Wire, SPT-1, 50'
- • Socket Type: C9
- • Professional/Commercial Grade
- • Length: 50'
- • Number of Sockets: 40
- • Socket Spacing: 15"
- • Weep Holes: Located on the bottom of sockets. Allows water and air to flow through, keeping the socket drier.
- • Rating: SPT-1 - .03 inch insulation thickness
- • Wire Gauge: 18
- • Voltage: 110/120
- • Usage: Indoor/Outdoor
Plugs sold separately - (18/2 Male Slide On - SPT-1 and 18/2 Female Slide On - SPT-1)
Maximum bulb load:
- 250 (C9) LED Retrofit bulbs or 250 feet of line, whichever comes first
- 100 (C9) 7-watt incandescent bulbs
- 70 (C9) 10-watt incandescent bulbs
Maximum amperage for 18/2 gauge wire:
- Up to 50 feet= 10 amps
- 51-100 feet= 7 amps
- 101-150 feet= 5 amps
- 151-200 feet= 3.5 amps*
- 201-250 feet= 2.5 amps*
*= Only used for C7/C9 perimeter lighting applications
Frequently Asked Questions
Once I install my male plug at the begining of the cord and then cut the cord to the desired length, what do I do with the end of the cord that has no end connector?
Some people simply fold the cord over into a small, 1" loop and then wrap electrical tape around it, however, we generally recommend using a female slide on plug for a safer and cleaner look.
| SPT | SPT-1 |
|---|
